Pro feeling.
A racing shell with a road licence

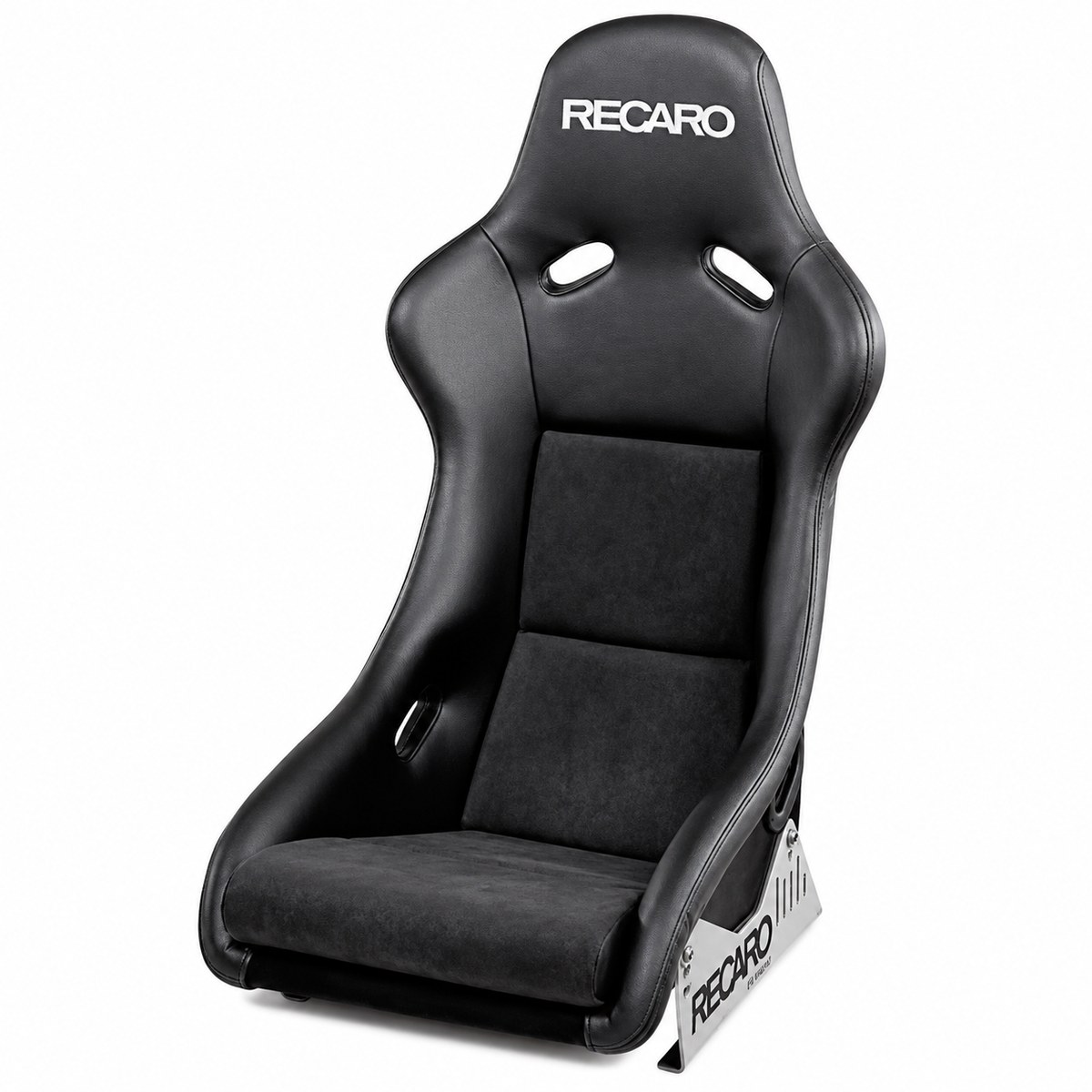

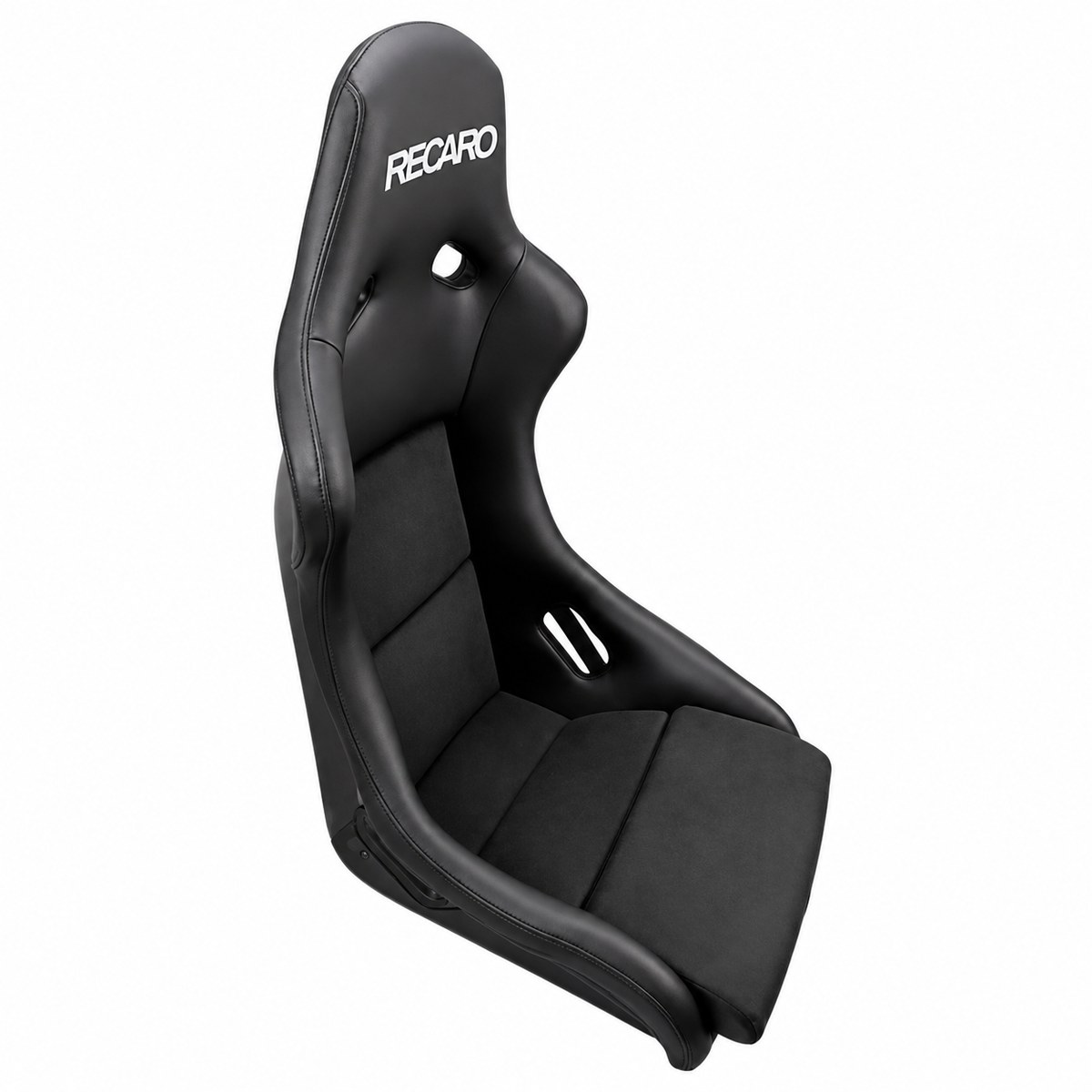

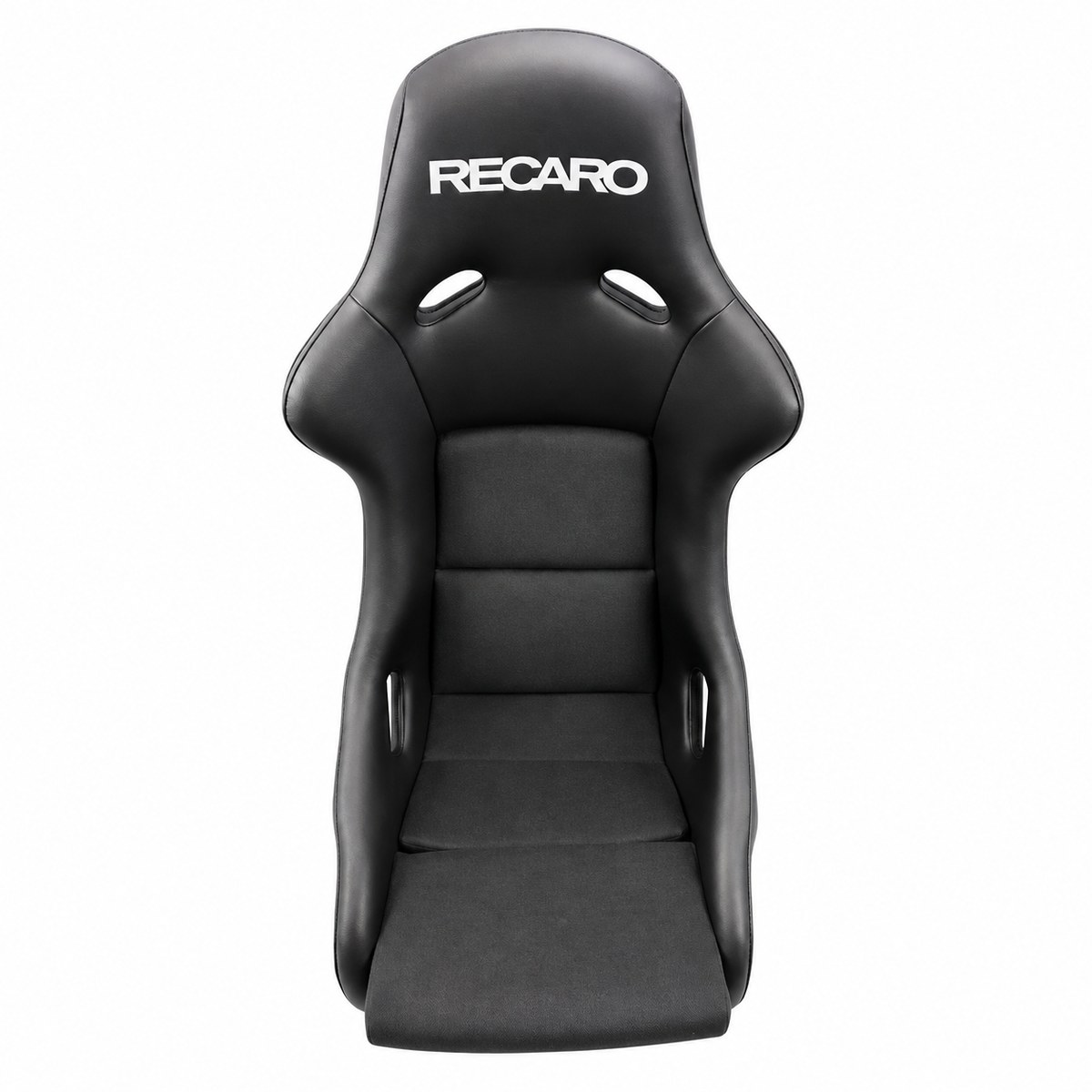

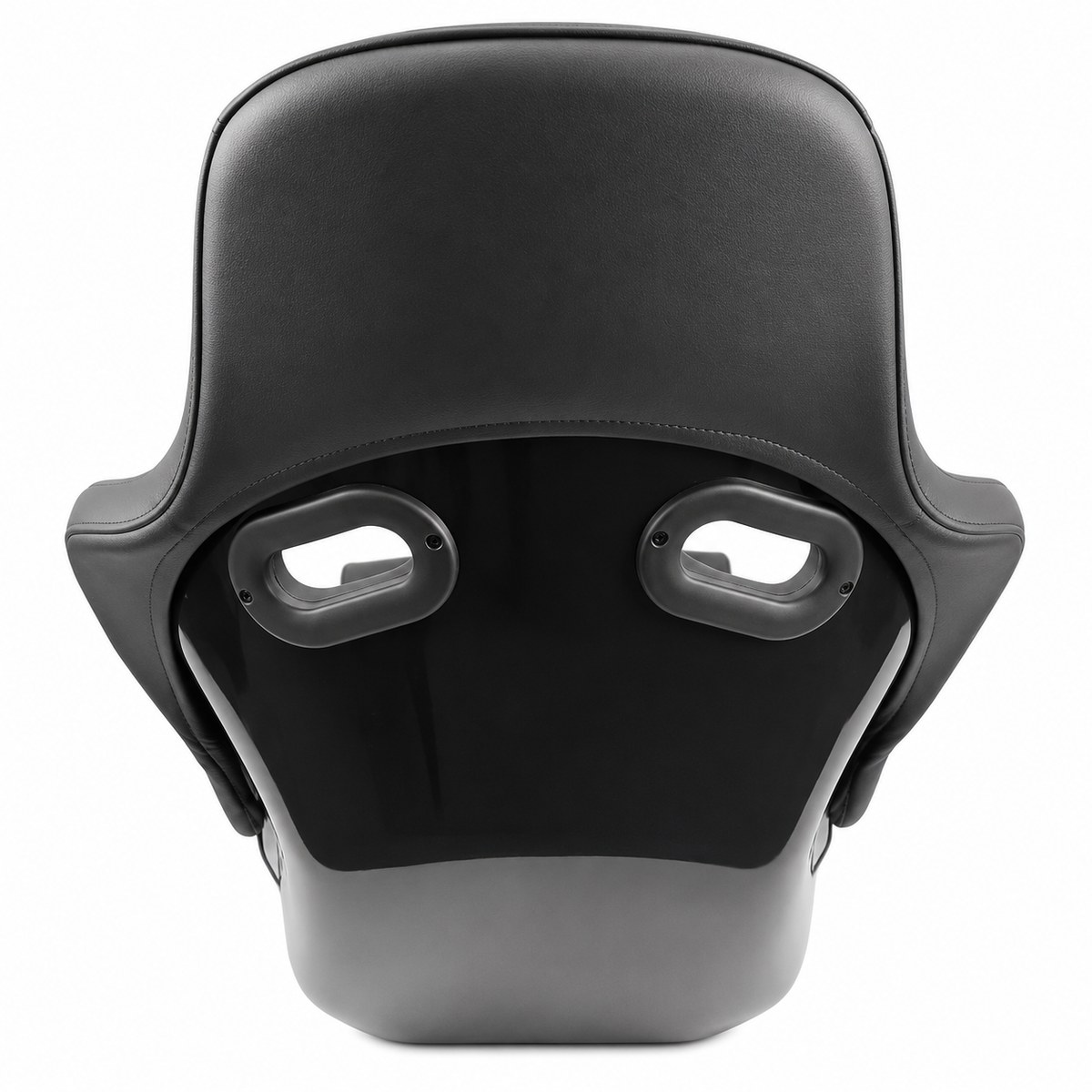

The Pole Position (ABE) is a one-piece racing shell released for the public road. The shell is produced either in carbon aramid (CFRP/AFRP) or in glass fibre reinforced plastic (GFRP). It carries an ABE/TÜV component certification with a 3-point belt for a range of vehicles, and that certification applies in combination with a RECARO console and adapter.
Product photography shows optional equipment.
Top features
Product
highlights
- ABE/TÜV component certification
- Paddable lumbar support
- Suitable for 3- and 4-point belts, street use
- Seat shell in carbon aramid (CFRP/AFRP)
- Seat shell in glass fibre reinforced plastic (GFRP)
Key numbers
Standard, option,
accessory
| Comfort | |
|---|---|
| Paddable lumbar support | ● |
| Lightweight | |
| Carbon aramid seat shell (CFRP / AFRP) | ● |
| Composite materials | ● |
| Seat shell glass fiber reinforced polymer (GFRP) | ● |
| Performance | |
| Integrated headrest | ● |
| Special lateral support in the backrest area | ● |
| Special lateral support in the seat cushion area | ● |
| Specially formed shoulder support | ● |
| Dynamic ride performance | ● |
| Slim design | ● |
| Safety | |
| Suitable for 3-, 4-point belt (street use) | ● |
| Highly fire-resistant upholstery | ● |
| ABE/TÜV component certification | ● |
Comfort dimensions
in millimetres
Dimensions in mm, all figures ±10 mm.
| Comfort dimensions | ||
|---|---|---|
| A | Seat height | 880 mm |
| B | Seat width | 390 mm |
| C | Seat depth | 495 mm |
| Weight | ||
|---|---|---|
| Pole Position (ABE) | approx. 7.0 kg | |
| Pole Position Carbon (ABE) | approx. 4.5 kg | |
| Accessories, ordered separately | ||
|---|---|---|
| Adapter, aluminium | 1.1 kg | |
| Adapter, steel | 2.6 kg | |
Options offered
for this shell
RECARO builds the Pole Position (ABE) in the upholsteries below. In stock at ATOMIC: Imitation leather / Dinamica black, Perlon velour black.
Turn the seat
The viewer runs on a turntable sequence: 36 frames at 10° steps,
2000 px wide, white background, fixed camera height. Drop them into
assets/360/ppabe/frame-01.jpg and set data-frames="36".
The RECARO site carries a 3D viewer for this shell. That viewer is proprietary and cannot be reused, so the equivalent here runs on a frame sequence shot in-house. Drag or use the arrow keys once the frames are in place.
Until then the gallery above carries the product render, the vehicle interior and every upholstery variant.
Pole Position (ABE)
Can it be used on the road?
Yes, with the ABE/TÜV component certification and a 3-point belt. The certification applies in combination with a RECARO console and adapter, and coverage is vehicle-specific.
Carbon or GFRP?
Both shells are offered. The carbon aramid shell weighs approx. 4.5 kg against approx. 7.0 kg for the standard version, at a higher price.
Does the backrest recline?
No. This is a fixed-back shell. Seating angle is set by the console and adapter.
